Electric Press Brake

ITEM : CNC-4016-e

The Servo-Electric press brake driven by high inertia type Servo motor and heavy duty Ballscrew to positioning the Y-axis.

Details

The Servo-Electric press brake driven by high inertia type Servo motor and heavy duty Ballscrew to positioning the Y-axis.

And the specialized in absence of Hydraulic makes Servo-Electric press brake as environmentally friendly, which is no risk of pollution oil and leakage problems, as well as more energy-efficient than a comparable Hydraulic press brake.

Features

The controller ability synchronized 6-axes to work press brake (Y1.Y2.X.R.Z1.Z2)
Energy-efficient, environment-friendly, high efficiency and high precision
High inertia type Servo motor
Heavy-duty Ballscrew
"HEIDENHAIN"Linear scale
Y1/Y2 axes positioning accuracy ±0.01mm
R-axis stroke 180mm, X-axis stroke 600mm.
The Bending dimension ability to 1000mm if using the 3rd step Backgauge Stopper

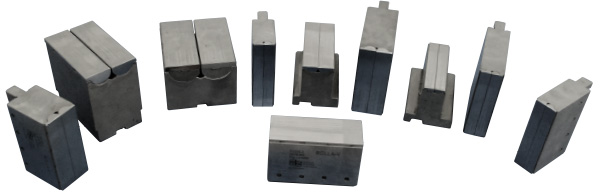

Press brake tool from Rolla-V with little or no marking.
